軸承防鬆螺帽・鋼片螺帽
自鎖防鬆螺帽，根據工程學原理加裝特殊鎖緊彈簧鋼圈，使用時彈簧鋼圈自然夾壓於螺絲槽溝，防震、防鬆效果且可反覆磨擦也不致影響螺紋及鎖緊彈簧鋼圈，在溫度變化從 -30°C 加熱至 +300°C 和各種油類(汽油、石油、酒精)等侵蝕中，均不影響其鎖緊能力。

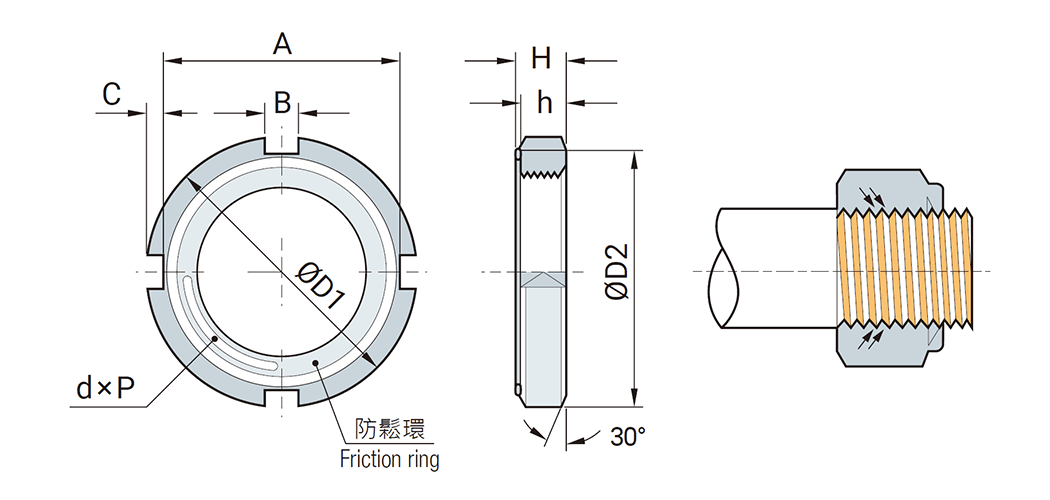

| 型號 | 螺牙 (d×p) | D1 | D2 | A | C | B | h | H | 單重 Kg | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AN00 | M10×0.75 | 18 | 0 -0.2 | 13 | 0 +0.2 | 14 (14.4) | 0 -0.2 | 2 (1.8) | 3 | +0.1 | 4 | 5.2 | +0.3 | 0.007 |
| AN01 | M12×1 | 22 | 0 -0.2 | 17 | 0 +0.2 | 18 (18.4) | 0 -0.2 | 2 (1.8) | 3 | +0.1 | 4 | 5.4 | +0.3 | 0.075 |
| AN02 | M15×1 | 25 | 0 -0.5 | 21 | 0 -0.5 | 21 (21.4) | 0 -0.5 | 2 (1.8) | 4 | +0.2 | 5 | 6.5 | +0.5 | 0.010 |
| AN03 | M17×1 | 28 | 0 -0.5 | 24 | 0 -0.5 | 24 (24.2) | 0 -0.5 | 2 (1.9) | 4 | +0.1 | 5 | 6.4 | +0.5 | 0.014 |
| AN04 | M20×1 | 32 | 0 -0.5 | 26 | 0 -0.5 | 28 (28.4) | 0 -0.5 | 2 (1.8) | 4 | +0.1 | 6 | 7.7 | +0.5 | 0.022 |
| AN05 | M25×1.5 | 38 | 0 -0.5 | 32 | 0 -0.5 | 34 | 0 -0.5 | 2 | 5 | +0.1 | 7 | 9.1 | +0.5 | 0.035 |
| AN06 | M30×1.5 | 45 | 0 -0.5 | 38 | 0 -0.5 | 41 | 0 -0.5 | 2 | 5 | +0.1 | 7 | 9.1 | +0.8 | 0.048 |
| AN07 | M35×1.5 | 52 | 0 -0.5 | 44 | 0 -0.5 | 48 | 0 -0.5 | 2 | 5 | +0.1 | 8 | 10.2 | +0.8 | 0.075 |
| AN08 | M40×1.5 | 58 | 0 -0.5 | 50 | 0 -0.5 | 53 | 0 -0.5 | 2.5 | 6 | +0.1 | 9 | 11.2 | +0.8 | 0.098 |
| AN09 | M45×1.5 | 65 | 0 -0.5 | 56 | 0 -0.5 | 60 | 0 -0.5 | 2.5 | 6 | +0.1 | 10 | 12.5 | +1.0 | 0.14 |
| AN10 | M50×1.5 | 70 | 0 -0.5 | 61 | 0 -0.5 | 65 | 0 -0.5 | 2.5 | 6 | +0.1 | 11 | 13.5 | +1.0 | 0.167 |
| AN11 | M55×2 | 75 | 0 -0.5 | 67 | 0 -0.5 | 69 | 0 -0.5 | 3 | 7 | +0.1 | 11 | 13.5 | +1.0 | 0.17 |
| AN12 | M60×2 | 80 | 0 -0.5 | 73 | 0 -0.5 | 74 | 0 -0.5 | 3 | 7 | +0.1 | 11 | 13.5 | +1.0 | 0.195 |
| AN13 | M65×2 | 85 | 0 -0.5 | 79 | 0 -0.5 | 79 | 0 -0.5 | 3 | 7 | +0.1 | 12 | 15 | +1.5 | 0.224 |
| AN14 | M70×2 | 92 | 0 -0.5 | 85 | 0 -0.5 | 85 | 0 -0.5 | 3.5 | 8 | +0.1 | 12 | 15 | +1.5 | 0.292 |
| AN15 | M75×2 | 98 | 0 -0.5 | 90 | 0 -0.5 | 91 | 0 -0.5 | 3.5 | 8 | +0.1 | 13 | 15.8 | +1.5 | 0.33 |
| AN16 | M80×2 | 105 | 0 -0.5 | 95 | 0 -0.5 | 98 | 0 -0.5 | 3.5 | 8 | +0.1 | 15 | 18.6 | +1.5 | 0.42 |
| AN17 | M85×2 | 110 | 0 -0.5 | 102 | 0 -0.75 | 103 | 0 -0.5 | 3.5 | 8 | +0.1 | 16 | 19.2 | +1.5 | 0.505 |
| AN18 | M90×2 | 120 | 0 -0.5 | 108 | 0 -0.75 | 112 | 0 -0.5 | 4 | 10 | +0.3 | 16 | 20.3 | +1.5 | 0.69 |
| AN19 | M95×2 | 125 | 0 -0.5 | 113 | 0 -0.75 | 117 | 0 -0.5 | 4 | 10 | +0.3 | 17 | 21.3 | +1.5 | 0.755 |
| AN20 | M100×2 | 130 | 0 -0.5 | 120 | 0 -0.75 | 122 | 0 -0.5 | 4 | 10 | +0.3 | 18 | 22.3 | +1.5 | 0.855 |
